Your Process. Your Way.
Not all chromatography purification workflows are identical. Multiple column hardware configuration options provide packing and processing flexibility to meet your process requirements from pilot scale to commercial manufacturing.
We also specialize in custom-designed columns for unique applications tailored to your specifications.
Minimum Downtime. Maximum Confidence.
VERDOT experts are available worldwide to assist with onsite column packing and provide solutions for unique procedural and environmental challenges. With innovative packing techniques, even the most challenging chromatography resins can be packed into a well-distributed and stable bed.
Take advantage of our on-site packing support to ensure you receive exceptional user experience with VERDOT columns.
|
|

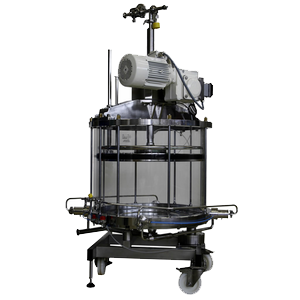

InPlace™ Columns |

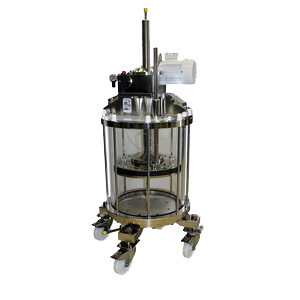

EasyPack™ Columns |

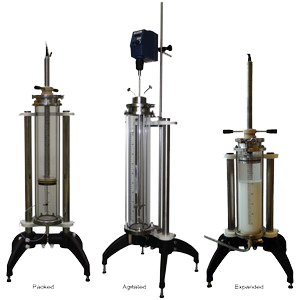

PilMod™ Columns |
Custom Columns |
|---|---|---|---|---|
|
Application |
Small to large batch processes |
Small to large batch processes |
Small batch processes |
Specialty design |
|
Motorized Axial Compression |
Yes |
Yes |
No |
Yes |
|
Diameters (I.D.) |
20-200 cm |
20-200 cm |
10-200 mm |
Custom |
|
Tube Heights |
600 or 900 mm |
600 or 900 mm |
Up to 600 mm |
Custom |
|
Slurry Valves |
On side of column |
N/A |
N/A |
Optional |
|
Slurry Transfer |
Syringe-style |
Open column design |
Open column design |
Optional |
|
Packing |
Fully automated |
Semi-automated |
Manual |
Optional |
|
Unpacking |
Fully or semi-automated |
Manual |
Manual |
Optional |
|
Operating Pressure |
Up to 6 bar |
Up to 6 bar |
Up to 6 bar |
Up to 6 bar |
|
Tube Materials of Construction |
Acrylic Stainless steel Borosilicate glass |
Acrylic Stainless steel Borosilicate glass |
Borosilicate glass |
Acrylic Stainless steel Borosilicate glass AL6XN And more… |
|
Wetted Parts Materials of Construction |
USP class VI, 21 CFR 177 and animal-free origin or in compliance with EMEA/410 |
USP class VI, 21 CFR 177 and animal-free origin or in compliance with EMEA/410 |
USP class VI, 21 CFR 177 and animal-free origin or in compliance with EMEA/410 |
USP class VI, 21 CFR 177 and animal-free origin or in compliance with EMEA/410 |
| InPlace™ Columns | EasyPack™ Columns | PilMod™ Columns | Custom Columns |
Contact VERDOT now to upgrade your column packing experience!
