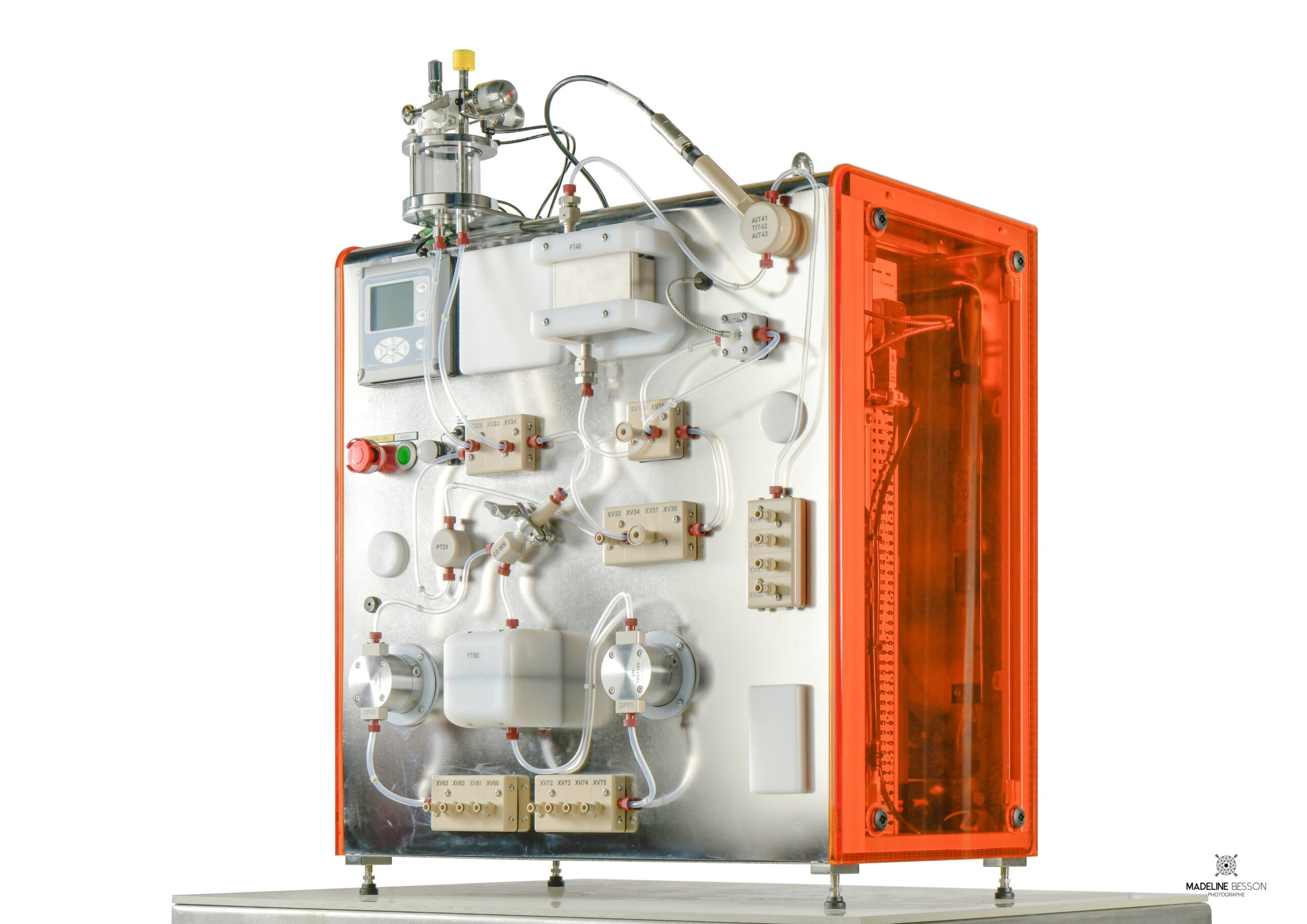

MiniPro™ Chrom System

Compact Design. Full Impact.

The MiniPro™ Chrom is a versatile process chromatography benchtop system for small-scale GMP bioprocessing. The compact closed-system design is perfect for benchtop purification workflows.



Overview:

  • Flow rate range of 1.5-120 liters per hour
  • Pressure rating to 6 bar
  • Designed for easy cleaning and maintenance
  • Inline dilution and gradient operation
  • Comprehensive documentation package for regulatory submissions
  • It is controlled though a wireless tablet device with SCADA software. The control system software meets U.S. FDA 21 CFR Part 11 requirements and passcode protected to record all events and actions in accordance with GMP compliance guidelines.

Product Options

Product

MiniPro™ Chrom Pilot

MiniPro™ Chrom Process

Flow Range

1.5-60 L/hr

(25-1000 mL/min)

5-120 L/hr

(83.3-2000 mL/min)

Tubing I.D.

4.8 mm

4.8 mm

Column Diameter (mm)

25-200

50-250

Product Specifications

Operating Pressure

0-6 bar

Inlets

4 + 4

Outlets

4 standard + 4 optional

Pre-Column Sensors

Standard: Flow meter, Pressure

Optional: Conductivity, Air sensor, pH

Post-Column Sensors

Standard: Conductivity, pH, UV, Flow meter

Optional: Pressure

Pump Technology

Pilot: Piston pumps

Process: Diaphragm/Membrane

UV

190–500 nm

Conductivity

0 uS/cm – 500 mS/cm

pH range

0-14 pH

Dimensions (HxWxD)

808 x 646 x 1060 mm
